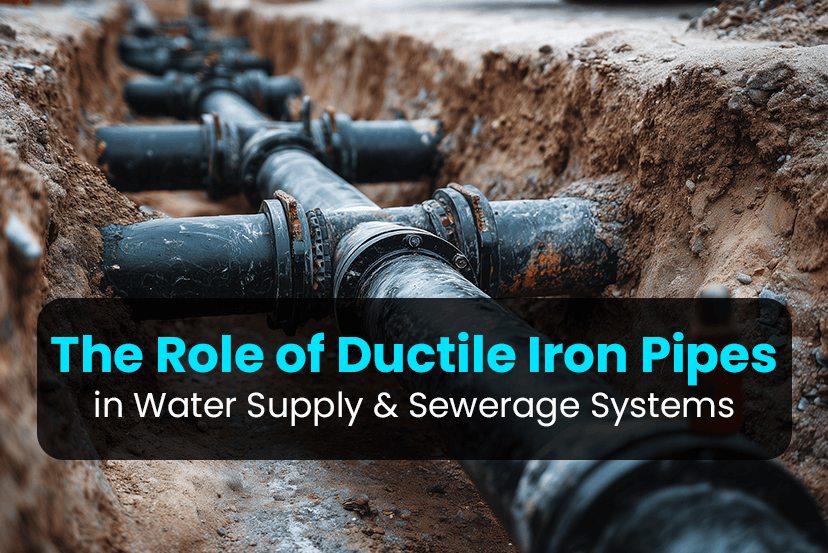

The Role of Ductile Iron Pipes in Water Supply & Sewerage Systems

Ductile Iron Pipes play a crucial role in modern water supply and sewerage systems due to their exceptional strength, flexibility, and long service life. These pipes are designed to efficiently transport clean water and wastewater under varying pressure conditions. Their corrosion resistance and ability to withstand ground movements make them ideal for both urban and rural infrastructure. Widely used in municipal, industrial, and irrigation projects, ductile iron pipes ensure a reliable and sustainable pipeline network. With easy installation and minimal maintenance, they offer significant economic advantages over other materials. Overall, they form the backbone of resilient and efficient water management systems. With this blog, let’s dive together into the concept of ductile iron pipes, their features, and importance in water supply and sewerage systems.
What Are Ductile Iron Pipes?
Ductile iron pipes are a great metallurgical innovation compared to the classic cast iron materials that controlled water systems for more than a century. This alteration happens during manufacturing, where minute amounts of magnesium are introduced to the molten iron such that, rather than flake graphite, there is a nodular graphite structure in normal cast iron. This infinitely minor chemical alteration quite literally re-orients the manner in which brittle cast iron is converted into a strong, ductile product capable of withstanding the intense demands of the modern utility system.
The manufacturing process necessitates control of temperature, composition, and cooling rates with high accuracy to achieve the most favorable microstructure across the pipe wall. Advanced quality control systems in contemporary manufacturing plants ensure uniform properties of the material and dimensional consistency.
This allows the material to not only maintain the strength of cast iron but also attain the required flexibility to resist ground movement, pressure fluctuations, and excessive external loads. Since they can perform well under challenging conditions, they are the most sought-after option for underground networks used to transport drinking water and sewage in cities and industries.
Key Properties of Ductile Iron Pipes
The superior performance of ductile iron in utility applications stems from several critical properties:
1. High tensile strength exceeding 420 MPa provides resistance to internal pressures and external loads.
2. Excellent ductility with elongation capabilities of 10% allows pipes to flex without breaking.
3. Impact resistance prevents damage during handling, installation, and service.
4. Corrosion resistance when properly coated enables decades of reliable operation.
5. Dimensional stability maintains pipe geometry under varying temperature and pressure conditions.
Why Ductile Iron Pipes Are Crucial for Water Supply Systems?
Providing safe and clean drinking water is perhaps the most important role of urban administration. Ductile iron pipes have an important role in making sure that this purpose is achieved with safety and consistency:
1. Long-Term Durability: Ductile iron pipes are long-term and reliable options for water utilities, with operational lifetimes of over 100 years. The material’s resistance to fatigue and stress corrosion cracking ensures that properly installed systems maintain their integrity throughout extended service periods. This long-term durability is appreciated by municipal engineers since replacement projects are expensive and disruptive.
2. Leak Control and Efficiency: Ductile iron pipes also provide superior leak control and efficiency, with joint systems employed to reduce water loss across the distribution network. Well-constructed joints are able to withstand pressure changes and ground movement and avoid leaks in other systems. This in turn results in a significant reduction of NRW (Non-Revenue Water) losses and improved system performance.
3. High-Pressure Quality: These pipes are best suited for high-pressure services, such as transmission mains and discharge pump lines, because of their tensile strength and pliability. The pressure-bearing wall of the ductile iron fabrication also makes it a favorite in heavy-capacity pumping locations like water treatment facilities and booster stations.
4. Versatility: Ductile iron is a versatile material that can easily be used in any kind of environment and will provide lasting service with longevity. They can easily follow seasonal soil movements without experiencing structural damage; they are not affected by external loads such as traffic and construction work or pressure from the soil.
5. Fire Safety Benefit: They also offer fire safety advantages, as it maintains structural integrity and continues delivering water when needed most. This is even more important in times of emergency, as the retention of water pressure is vital to a community’s safety and the effective fighting of fire.
The Role of Ductile Iron Pipes in Sewerage Systems
Wastewater collection systems require even more resistance than water supply systems to corrosive effluent and fluctuating flow regimes. Ductile iron pipes are superior in these aspects as well:
1. Corrosion Protection: Ductile iron pipes with cement mortar lining, epoxy coating, or polyethylene sleeving for their capacity to resist the corrosive forces found in sewer systems. These protective barriers shield the wastewater from contacting the iron, providing a strong, dependable performer for numerous years in industrial and treatment facility uses.
2. Hydraulic Efficiency: Ductile iron pipe has a smooth interior, thereby reducing clogging, while increasing flow through the pipe and preventing accumulated sewer backup or environmental pollution. They keep the flow velocities in gravity systems under control and reduce frictional losses in pumped systems, resulting in energy savings and longer life for pumping equipment.
3. Structural Strength for Heavy Loads: Urban sewer networks are required to withstand heavy external loads from traffic, road construction equipment, and building foundations without compromising their integrity and joint sealing. Ductile iron offers a high strength-to-weight ratio with superior load-carrying capacity that avoids pipe crushing and deformation under such extreme conditions.
4. Leak Prevention and Hygiene: Wet sewer system preservation avoids groundwater pollution and minimizes infiltration overloading treatment plants, and ductile iron’s consistent joint systems lead the way in long-term sealing performance. Effective joint assembly imposes barriers that exclude sewage from escaping into the surrounding ground while excluding groundwater from entering the sewer system.
5. Longevity in Harsh Conditions: Sewerage systems are in some of the toughest conditions of municipal infrastructure, with corrosive internal environments combined with aggressive external soil conditions. Ductile iron pipe with complete protection systems gives good service for years even in these extreme applications, minimizing lifecycle costs and system disruption.
